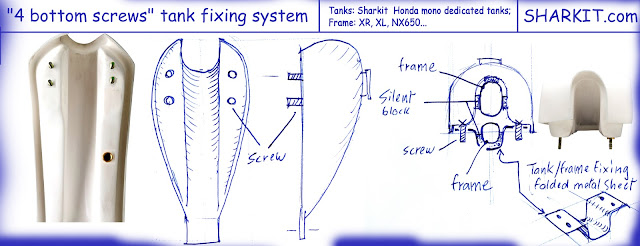

"4 bottom screws" tank fixing system

Suggestion to fix on all XR, XL, NX650 frame the Sharkit dedicated composite tanks;
Two or four screws are set at the tank bottom, as shown on the picture below.
This is how your tank can be delivered.

You have to make a front tank support with a folded metal sheet, set as shown on the frame.
NO NEED to weld to do this, only common tools and material.



DO NOT forget silent blocks. Composite never in direct contact with the frame, remember !!

Apparemment vaut mieux faire deux pattes, une de chaque coté, fixées sur les point d'attaches du moteur (en rouge dessin dessous)


vendredi 2 juin 2017

Honda XL 600 LM kit -- Modifying the stock tank support

Modifying the stock tank support to set the kit tank;
-no need to weld
-no need to look for extra parts difficult to find
-basic hand/electric tooling will make it









Honda XL 600 LM kit

Tank size & proportions






Honda XL 600 LM kit

Work in progress

White frame: XLM
Silver frame: Dominator
